Odoo Magento 2 Connector
By Magenest JSC
1. Description
Connect Odoo and Magento 2 effortlessly
Seamless Data Management from Odoo
Highlights
(Ảnh chia làm 5 ô tròn)
Odoo Magento 2 Integration
Error-free data transfer automation between Odoo and Magento 2
Manage entire operations directly from Odoo.
Product Management
In Magento 2: Automatically update product information (product name, price, check and stock quantity).
In Odoo: Set up Product Images, Short Descriptions, Price, Magento Attribute Sets, and Extra Images.
Inventory
Update inventory data through two-way synchronization.
Update stock in Magento 2 stores according to inventory changes to locations in Odoo
Order Management
With the addition of Odoo Integration for Magento 2 by Magenest, users can import orders from Odoo to Magento 2 and vice versa.
Shipment
Update Shipment Details from Odoo to Magento 2 automatically.
Set up Odoo Magento 2 Connector (Ảnh- đây là 3 bước nhé)
1. Access Magento Menu, Configure and Create New Magento Instance
2. Add parameters in instance form including Name, Magento URL, Access token, Prefix for Sale Order
3. Fetch Attribute Set ( If wanna Synchronize Product)
Magenest Odoo Services
Magenest is one of the pioneers in the partner network of Odoo and Magento, we leverage the power of open-source platforms to deliver the highest level of flexibility and scalability with global standard. Our holistic expertise enables us to implement a cost-effective and completed solution specialized to fit your business.
* Business Analysis & Advisory
* Odoo implementation and customization
* E-commerce and Omnichannel Solution
* Personnel training
* Post-launch service
2. Documentation
1. Magento Configuration
Once the module is installed, go to Magento Menu then create New Magento Record
Next, enter Name, Version, Magento URL, Magento Access Token, and Company Prefix Sale Oder
Note:
This module has not supported Multi-Magento yet
If there are any changes of Attribute Set on Magento, by clicking Fetch there will be an update on Odoo.
2. Create Odoo Product and Sync on Magento
On the Sales Menu, click Products/ Products
For Product Type, there are 9 options (Consumable, Service, Storable Product, Magento Simple, Magento Virtual, Magento Downloadable, Magento Configurable, Magento Downloadable, Magento Grouped, Magento Bundle)
To sync products to Magento, tick Sync Magento. Users can update Image, Short description( in Sales Page), Price, Magento Attribute Set, and Extra Image ( In eCommerce Page)
3. Sync Locations to Sources on Magento
Go to the Settings, click General Settings, go to Inventory to set up management location.
On Warehouse Menu, click Location then Create
Go to Inventory/Configuration/Locations
Parent Location= WH/Stock
Location Type: There are 8 options (Vendor Location, View, Internal Location, Customer Location, Inventory Loss, Procurement, Production, Transit Location)
If users tick on the Magento Source field, data will be synchronized from Odoo locations to Magento sources. If not, this function will be disabled.
Data sync to Magento: Contact Owner, Post Code, Country, Name.
4. Update Quantity Product To Source on Magento 2

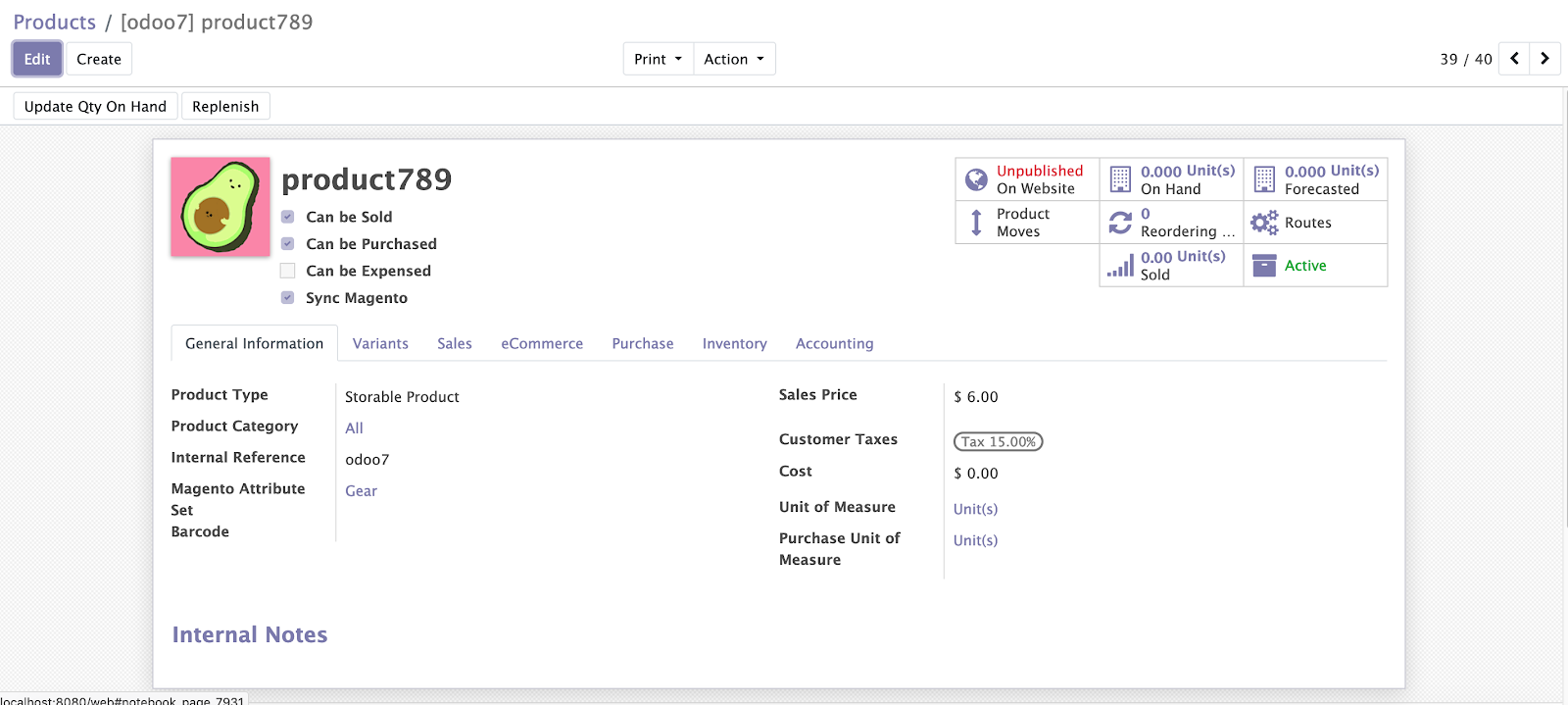

Chose product on menu Sales/Products/Products, click Update Qty on Hand
Note:
Products must be Sync Magento = True

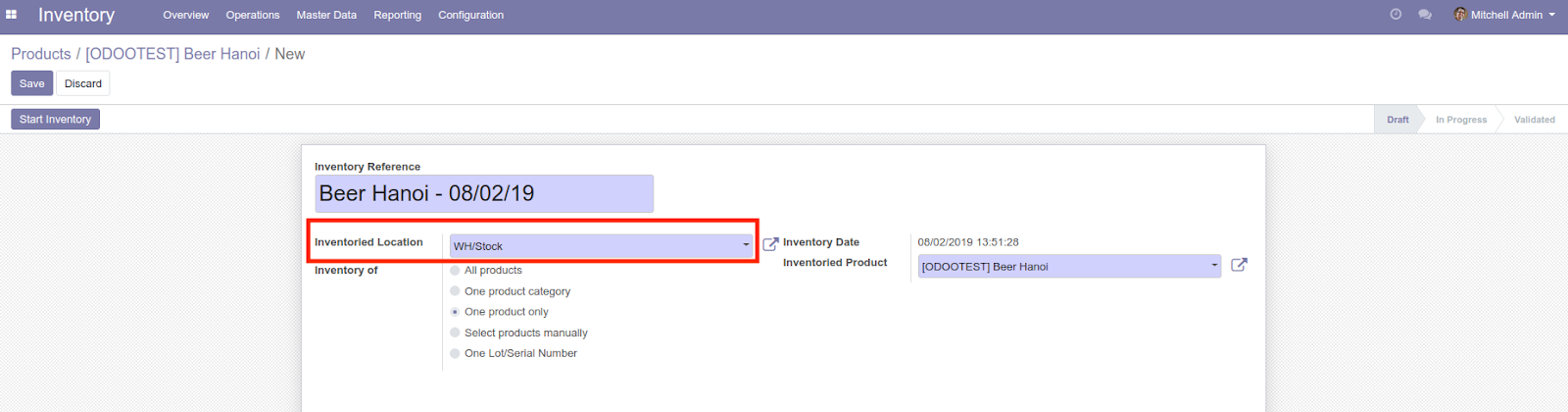

Choose location need update quantity
Note: location must sync on Magento
Click Start Inventory
Type qty need to update
Click Validate Inventory, qty product on location and source Magento is updated
5. Transfer product between locations
Go to Menu Inventory/Operations/Transfers
Operation type: Your Company, Internal transfer
Note: Product must be sync on Magento
Field Initial Demand: qty product transfer
Click Mark as Todo, click Check Availability
Click below button to type actual qty receive product
Type receive product on this pop-up
Click Validate

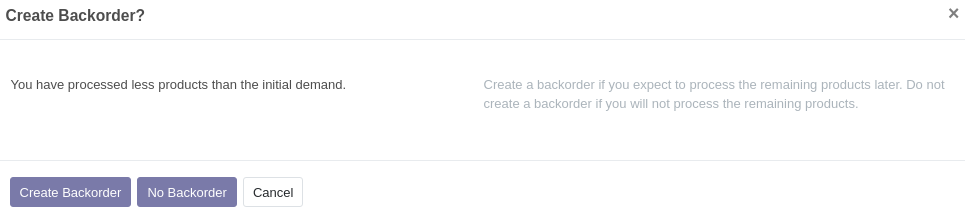

If the actual qty product < initial product system generate form
Create a backorder if you expect to process the remaining products later. Do not create a backorder if you will not process the remaining products.

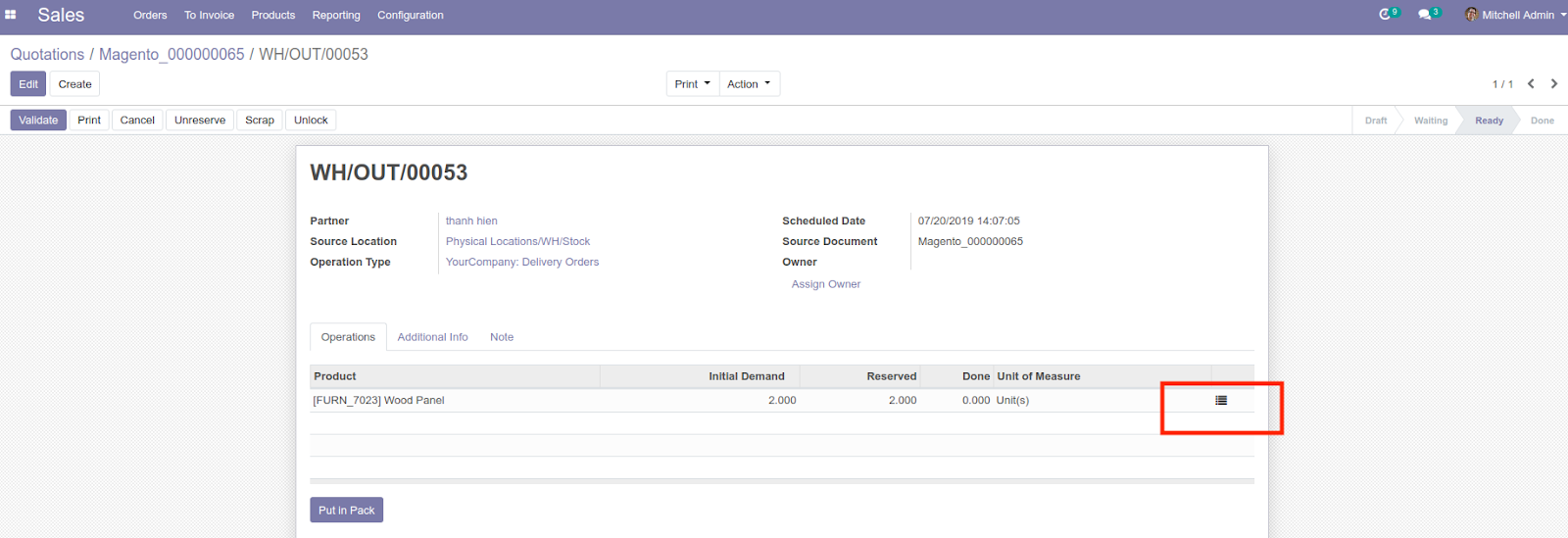

6. Validate Shipment Odoo to Magento 2
When create Sale Order when Magento auto-create sales order with a shipment draft on Odoo.
Click after icon to view information shipment order
Click below icon to type actual qty product shipment
When click validate button system will create shipments on Magento
About us
As a Ready Partner, Magenest delivers Odoo deployment for enterprises.
Need support or advance upgrades, please contact us through https://magenest.com/en/contact-us/
3. License
Odoo Proprietary License v1.0
This software and associated files (the "Software") may only be used (executed,
modified, executed after modifications) if you have purchased a valid license
from the authors, typically via Odoo Apps, or if you have received a written
agreement from the authors of the Software (see the COPYRIGHT file).
You may develop Odoo modules that use the Software as a library (typically
by depending on it, importing it and using its resources), but without copying
any source code or material from the Software. You may distribute those
modules under the license of your choice, provided that this license is
compatible with the terms of the Odoo Proprietary License (For example:
LGPL, MIT, or proprietary licenses similar to this one).
It is forbidden to publish, distribute, sublicense, or sell copies of the Software
or modified copies of the Software.
The above copyright notice and this permission notice must be included in all
copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,
DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER
DEALINGS IN THE SOFTWARE.
