Introduction


The Event Ticket extension for Magento 2 by Magenest is the ultimate extension for E-commerce websites that allows merchants to create and manage events and tickets. Merchants can create multiple custom ticket options such as VIP, adults, children,… each with a customized template to best fit the event's context. The extension can also send reminder emails so that your customer won't miss the event.

Features

For admin

For customers

System Requirements


Your store should be running on

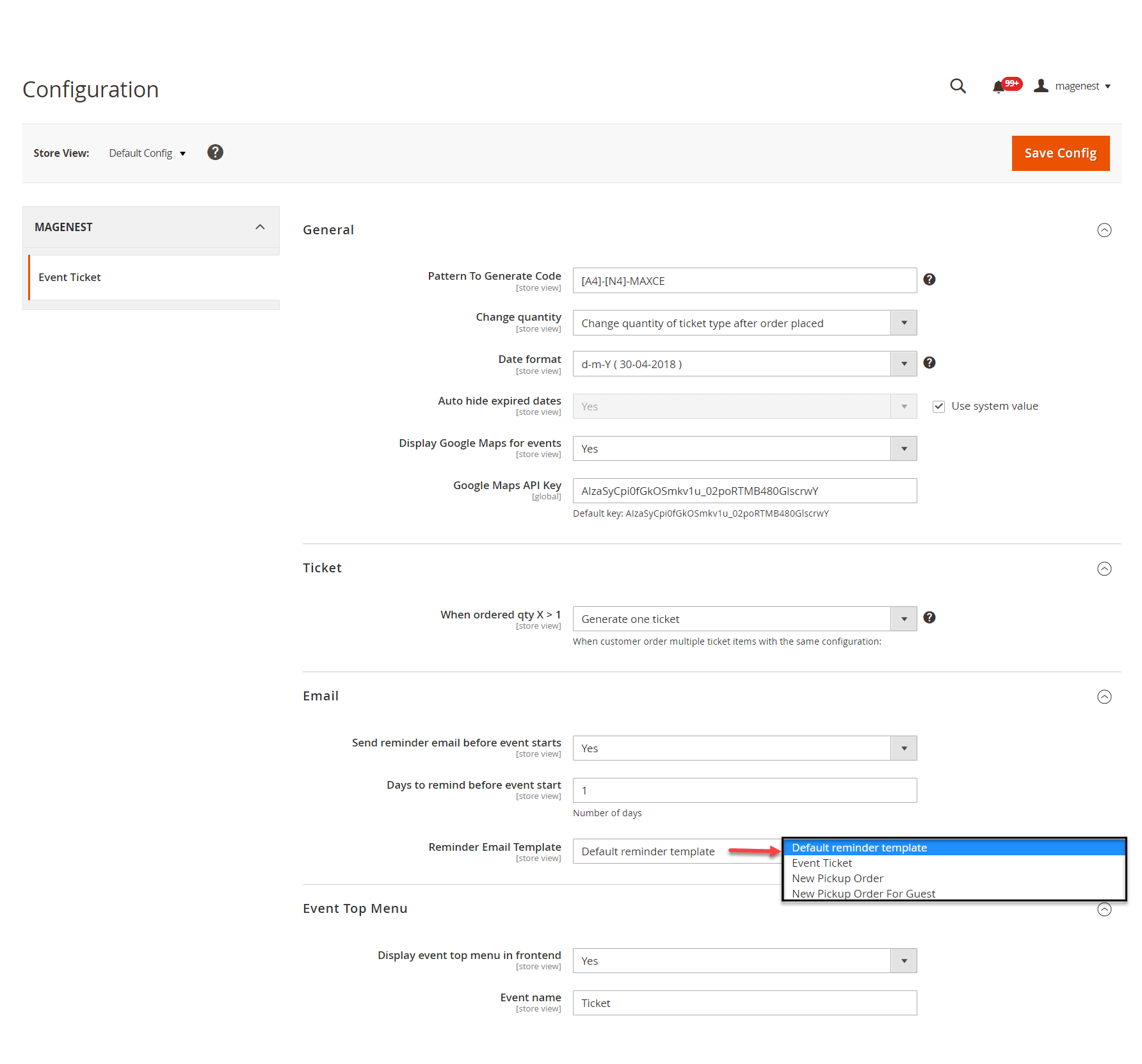

Configurations

On the Admin sidebar, go to Stores > Configuration > Magenest > Event Ticket.



(plus) General:

(plus) Google Maps:

Please note that your google map key needs to enable these Google Map API:

Geolocation API

Maps JavaScript API

(plus) Event Settings

(warning) Note: if multiple tickets are generated, there will be multiple emails sent to the purchaser.

(plus) Email Notifications:

After saving the configurations, please clear the cache to apply the changes.



Event ticket setting

Create a new event


(plus) In order to create a new event ticket, go to Catalog > Events > New Event




Edit Event Tickets

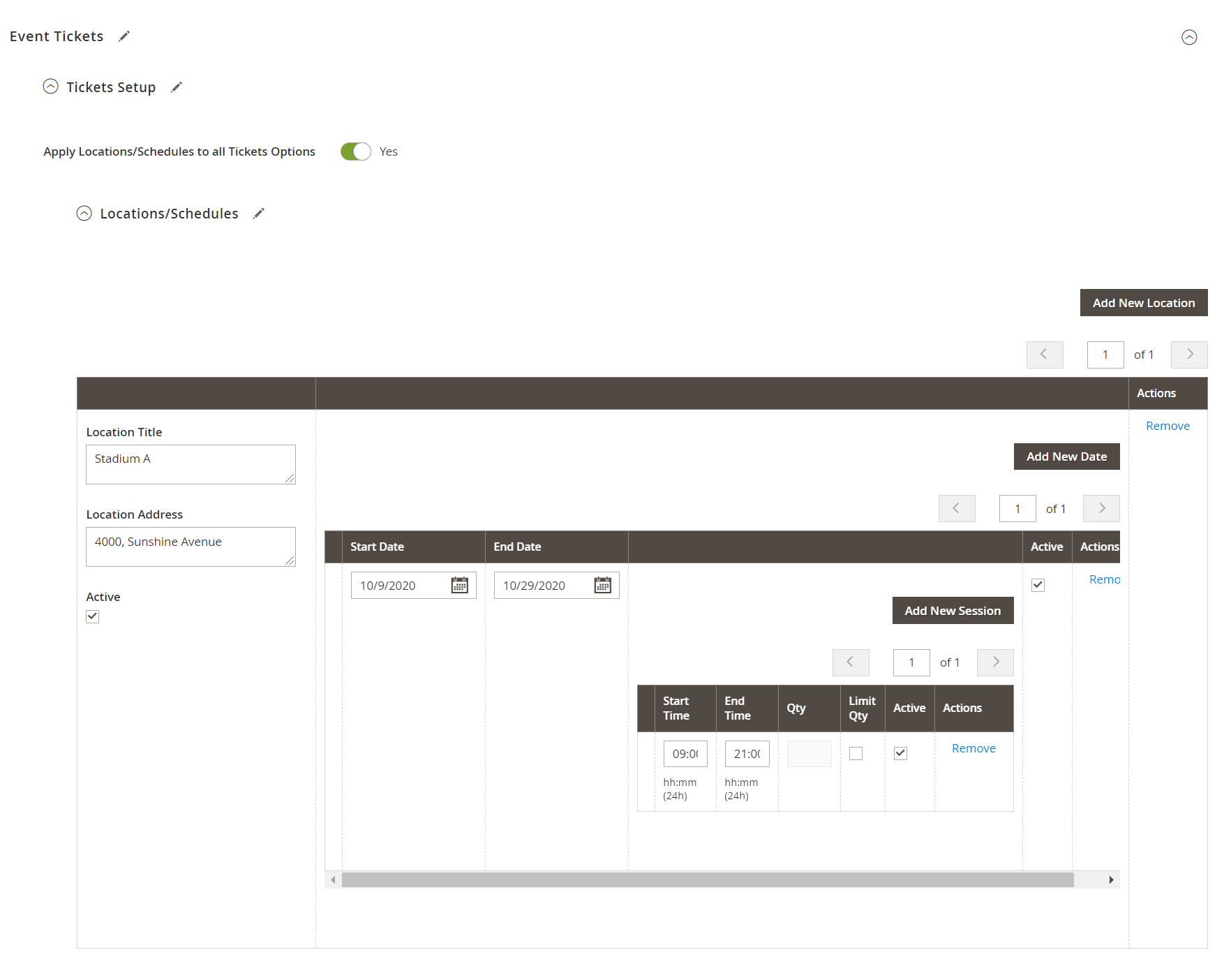

(plus) Tickets Setup

The ticket is a product on your site, so to set it up as an event ticket, please scroll down to see Event Ticket.

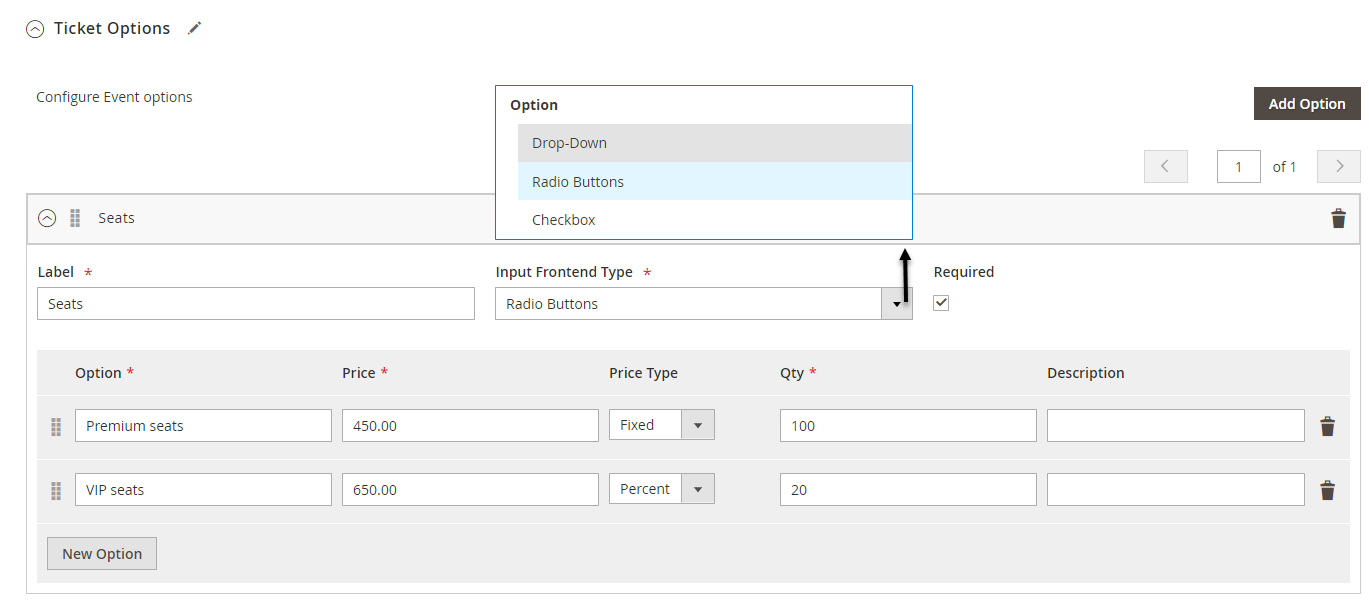

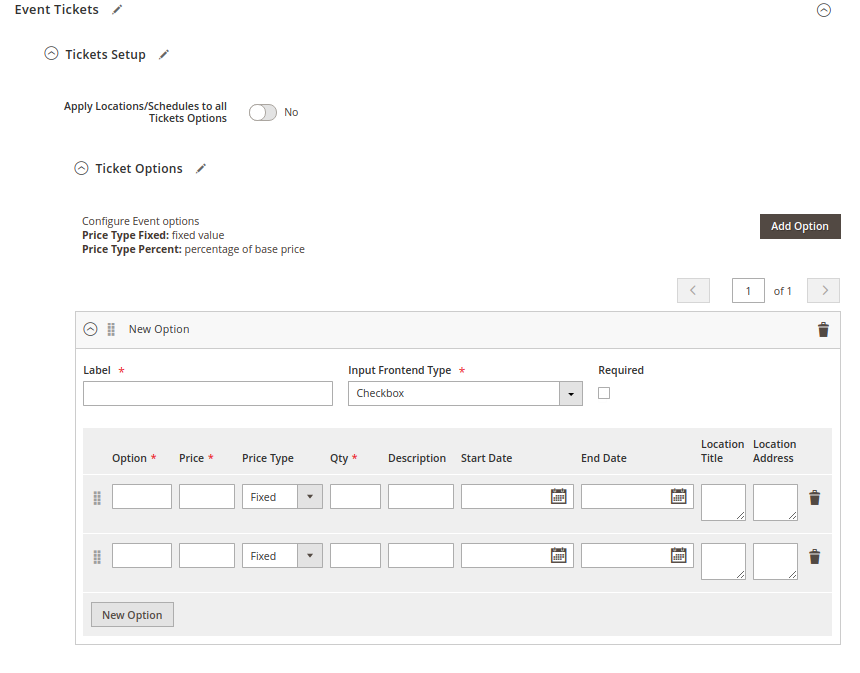

(plus) Ticket options:
You can add unlimited ticket options with its own price, quantity and description.


You can enable the Apply the locations/schedules to all the ticket options.

Adding an image to the gallery widget

To add images to the gallery widget in the frontend you need to set up images in section Image And Videos. 6 images that are not Banner Image will be shown in Gallery Widget.

(plus) Change banner image of ticket:

To change the banner image for the ticket product, you need to specify a banner-role image in Image And Videos:


Template Settings:

PDF Template

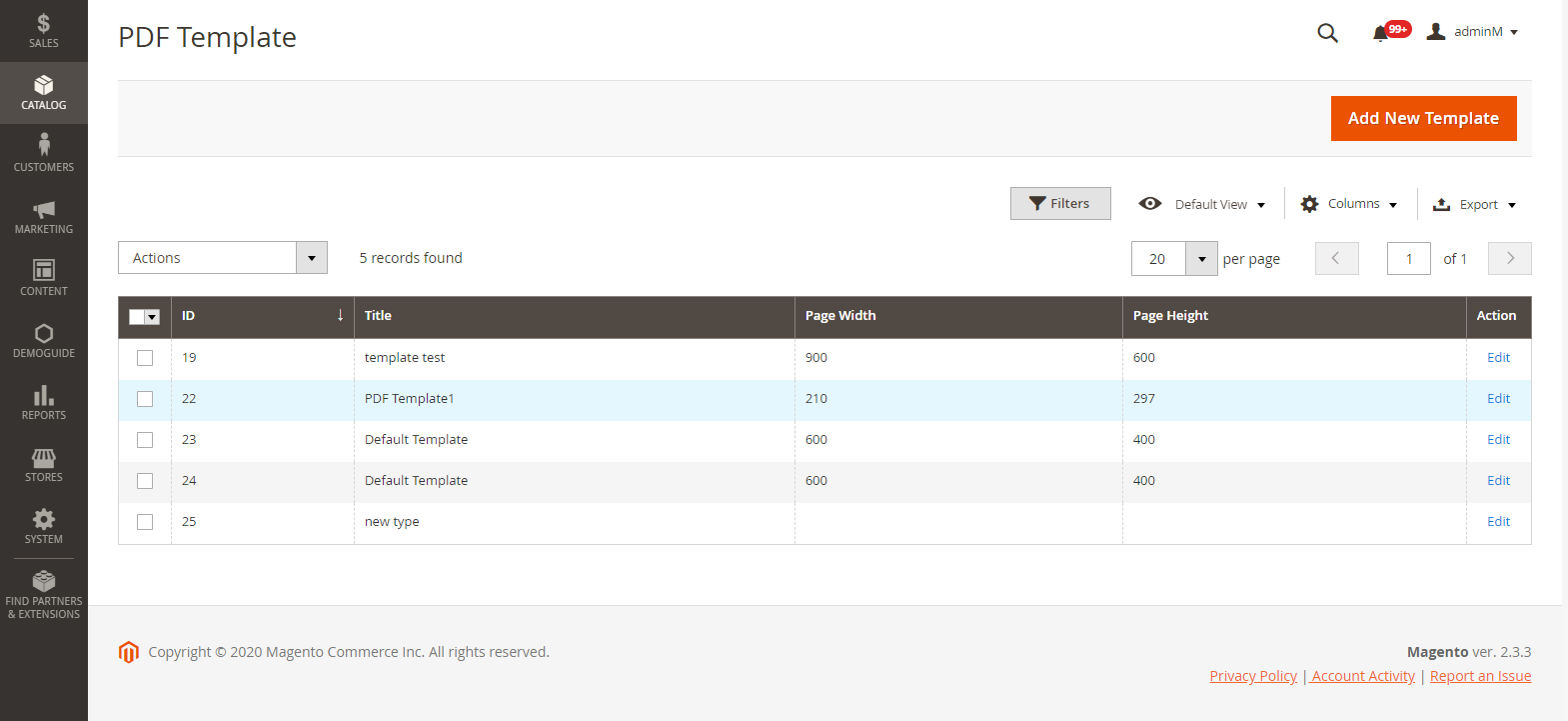

You can create any manage PDF Template in Catalog > PDF Template

(warning) Note: To use this type of template you need to install the MPDF library for your store by running the command "composer require mpdf/mpdf" in the root directory.



You can also preview the type template before by choosing action Preview Template

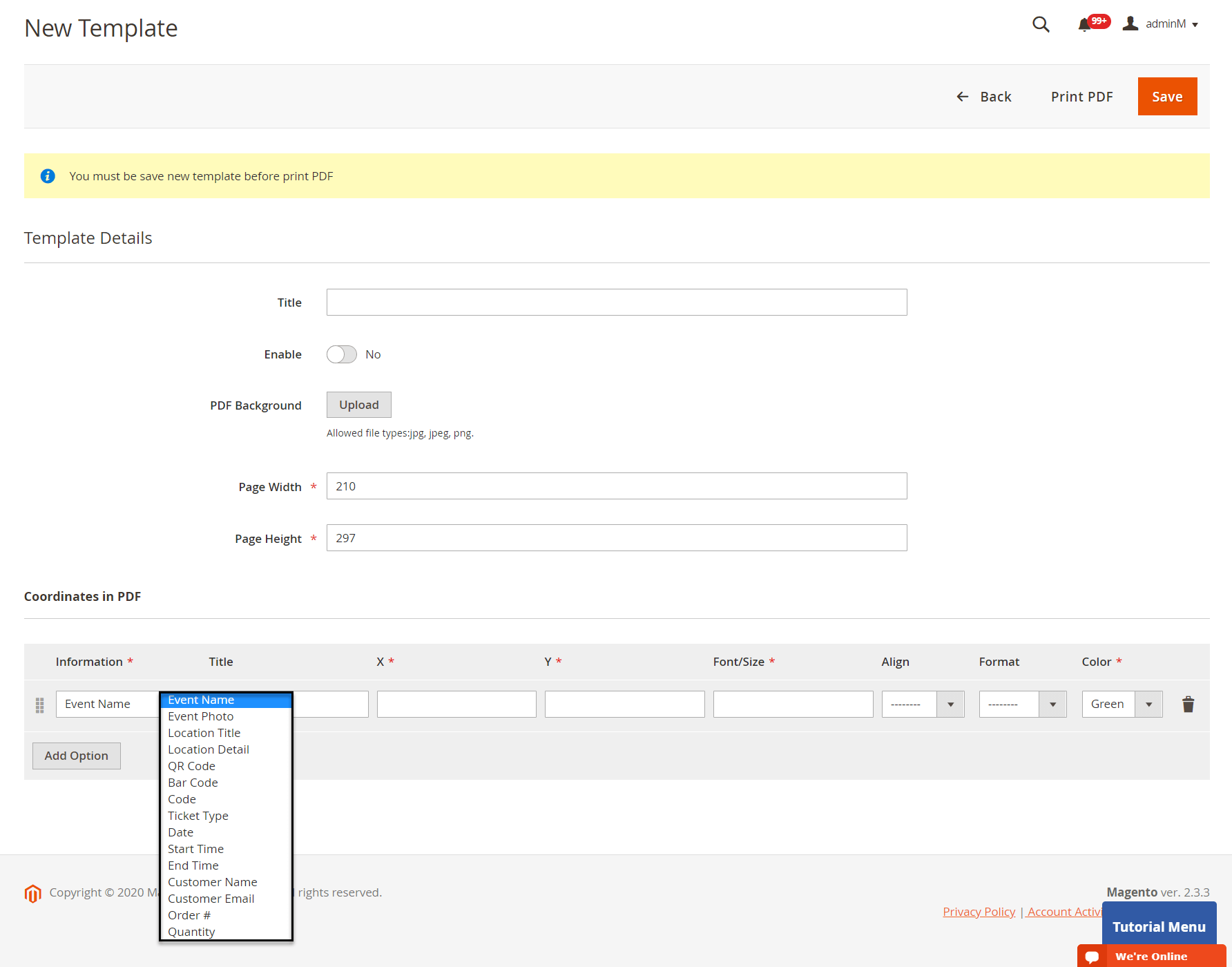

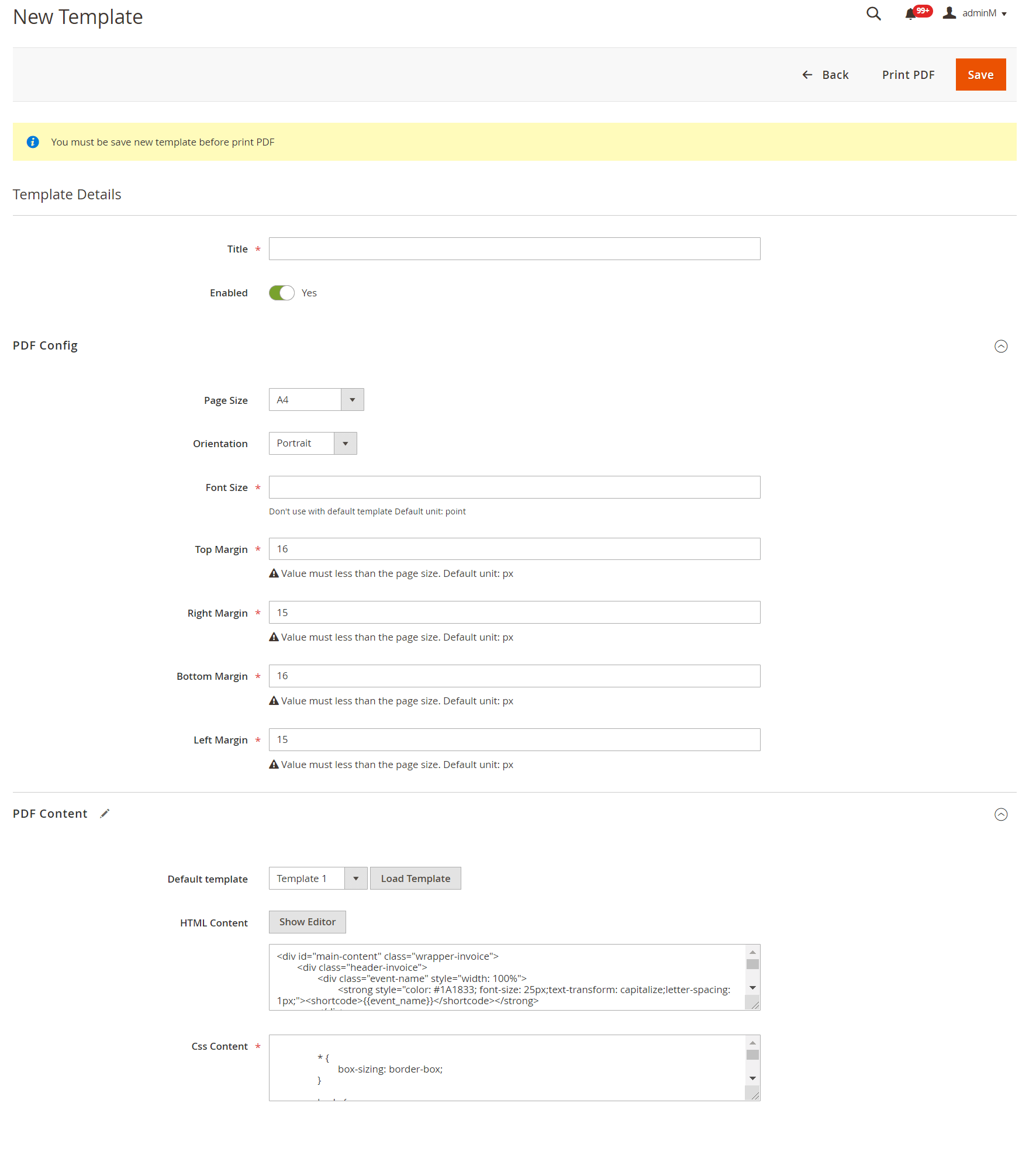

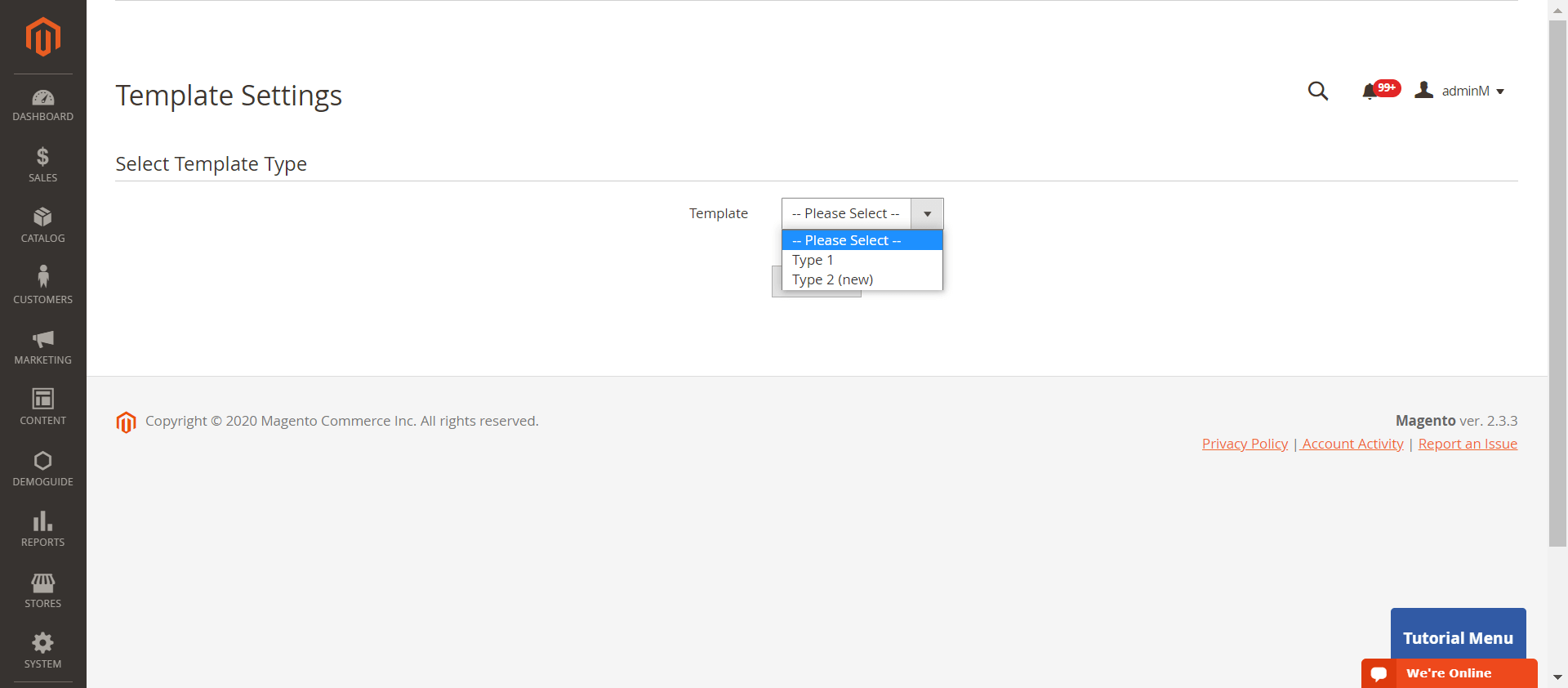

Creating PDF template

You can select between 2 default ticket template designs.

Note: currently, we removed the Type 1 template type.



(warning) Note: you can choose Preview PDF template to preview template type 1

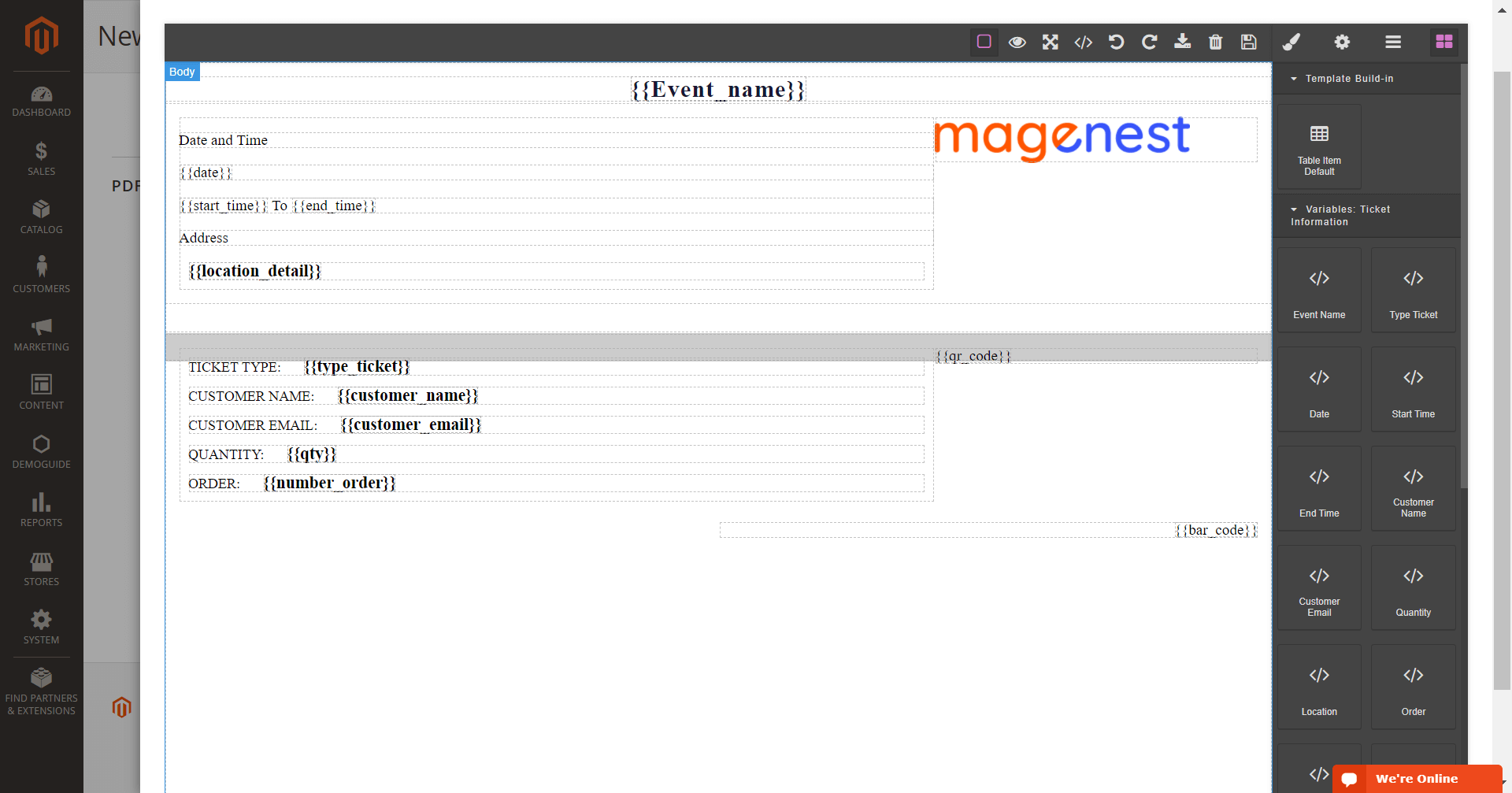

One thing with our new PDF template (Type 2) is that you can click on PDF Content > HTML Content > Show Editor, you'll be able to use Drag and Drop action to design the template,

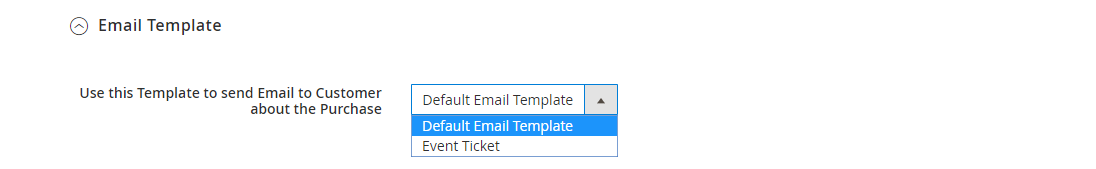

Email Template:

You can use the Default Email Template or you can customize your own email template in Marketing > Email Template. Any template created in there will be listed in the email template drop-down for you to select.



Below is the default email template:


{{template config_path="design/email/header_template"}}
<p>{{trans "Welcome to %store_name." store_name=$store.getFrontendName()}}</p>
<ul>
 <li><strong>{{trans "Event Name: "}}</strong> <em> {{var title}}</em></li>
 <li><strong>{{trans "Customer Name: "}}</strong> {{var customer_name}}</li>
 <li><strong>{{trans "My Code: "}}</strong> {{var ticket_code}}</li>
 <li><strong>{{trans "Location Title: "}}</strong> {{var location_title}}</li>
 <li><strong>{{trans "Location Detail: "}}</strong> {{var location_detail}}</li>
 <li><strong>{{trans "Date: "}}</strong> {{var date}}</li>
 <li><strong>{{trans "Time: "}}</strong> {{var time}}</li>
 <li><strong>{{trans "Quantity: "}}</strong> {{var qty}}</li>
 <li><strong>{{trans "Option: "}}</strong> {{var option_type}}</li>
</ul>
{{template config_path="design/email/footer_template"}}

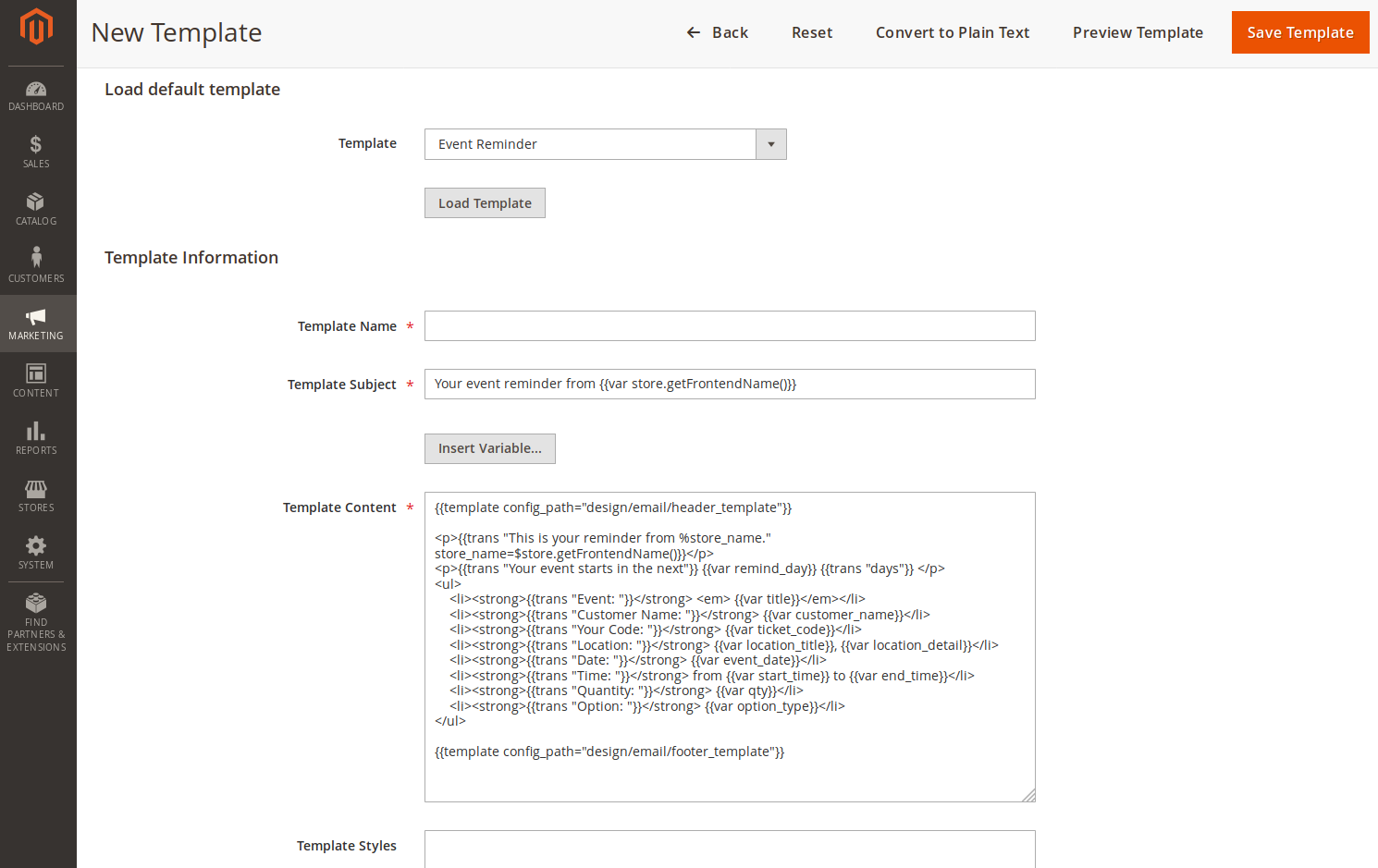

Reminder Email Templates

Assign the email template to send a reminder email. You can create an email template in Marketing > Email Templates

Below is the default email template:


{{template config_path="design/email/header_template"}}

<p>{{trans "This is your reminder from %store_name." store_name=$store.getFrontendName()}}</p>
<p>{{trans "Your event starts in the next"}} {{var remind_day}} {{trans "days"}} </p>
<ul>
	<li><strong>{{trans "Event: "}}</strong> <em> {{var title}}</em></li>
	<li><strong>{{trans "Customer Name: "}}</strong> {{var customer_name}}</li>
	<li><strong>{{trans "Your Code: "}}</strong> {{var ticket_code}}</li>
	<li><strong>{{trans "Location: "}}</strong> {{var location_title}}, {{var location_detail}}</li>
	<li><strong>{{trans "Date: "}}</strong> {{var event_date}}</li>
	<li><strong>{{trans "Time: "}}</strong> from {{var start_time}} to {{var end_time}}</li>
	<li><strong>{{trans "Quantity: "}}</strong> {{var qty}}</li>
	<li><strong>{{trans "Option: "}}</strong> {{var option_type}}</li>
</ul>

{{template config_path="design/email/footer_template"}}

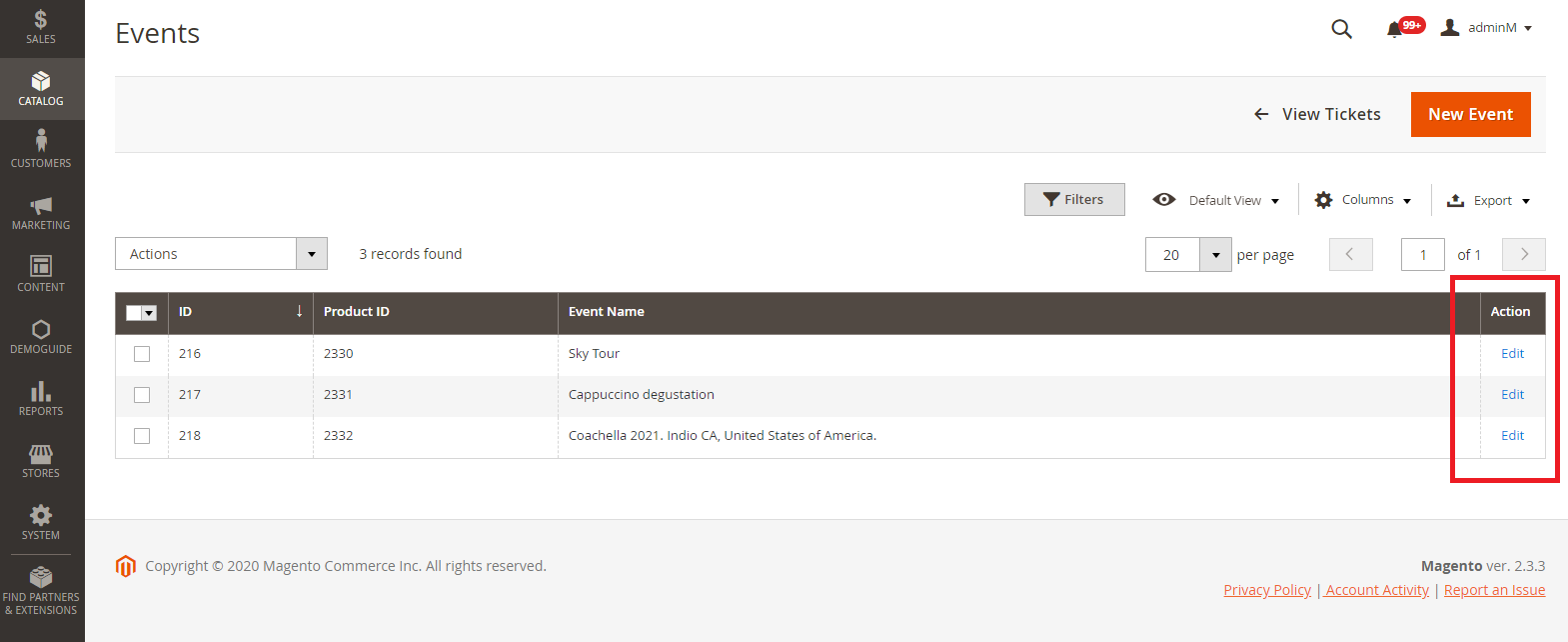

Manage events

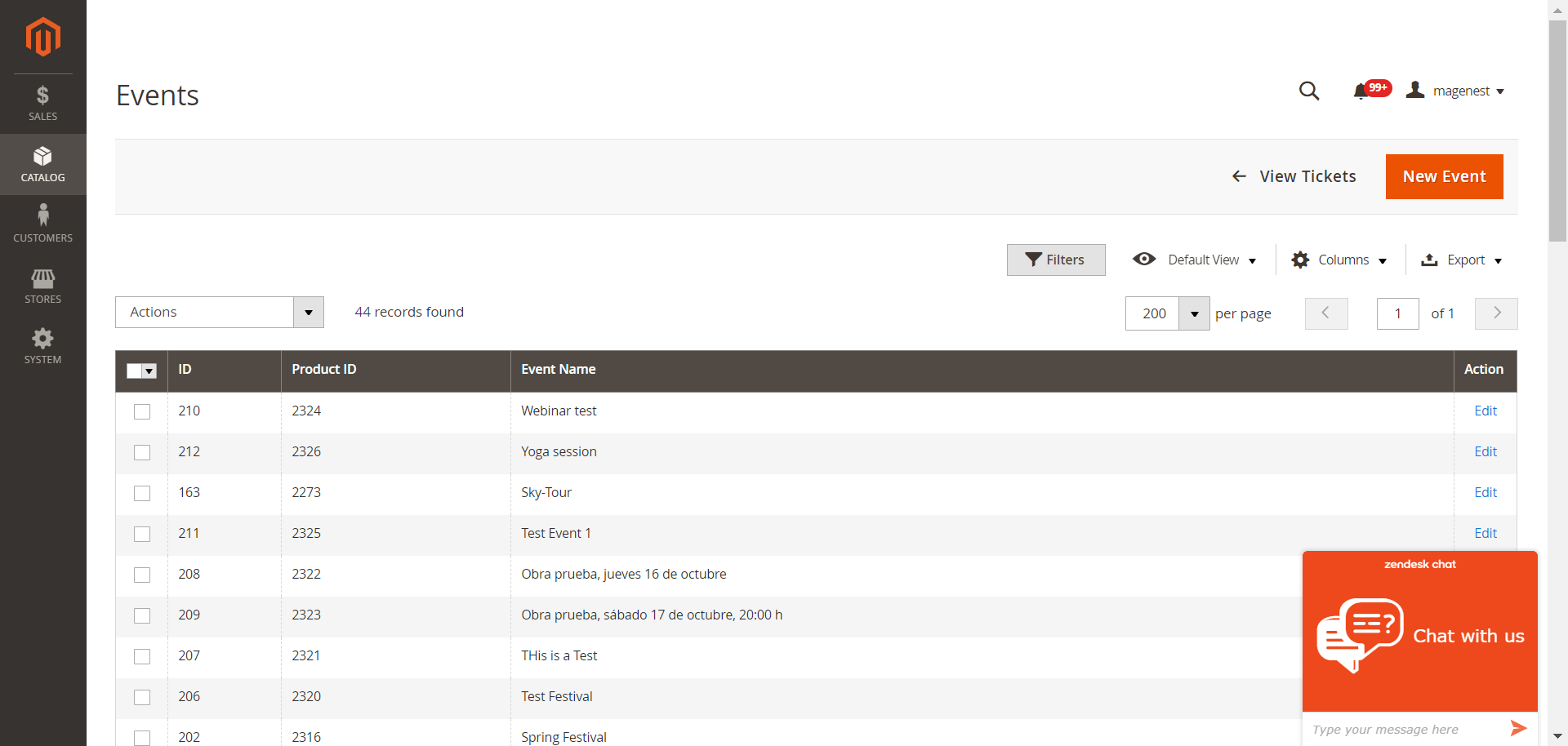

You can manage the events on your store in Catalog > Events

You can export this table to the CSV/XML file.

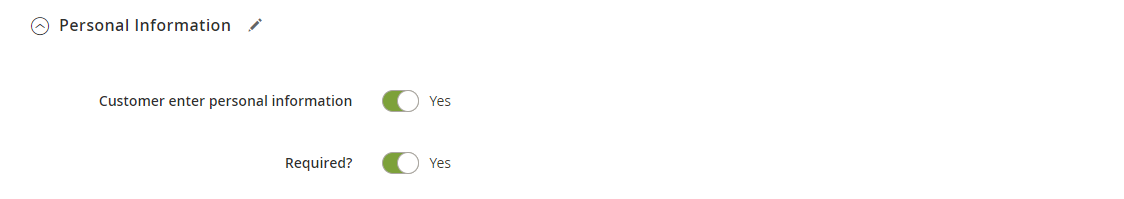

(plus) Personal Information

Catalog > Events > Edit > Event Tickets > Personal Information

In this setting, you can enable the attendee information form and set it as required. If it is required, the customer will have to fill in the form before adding the tickets to the cart.

If you do not need this feature, you can turn it down by switching the 2 options to No.

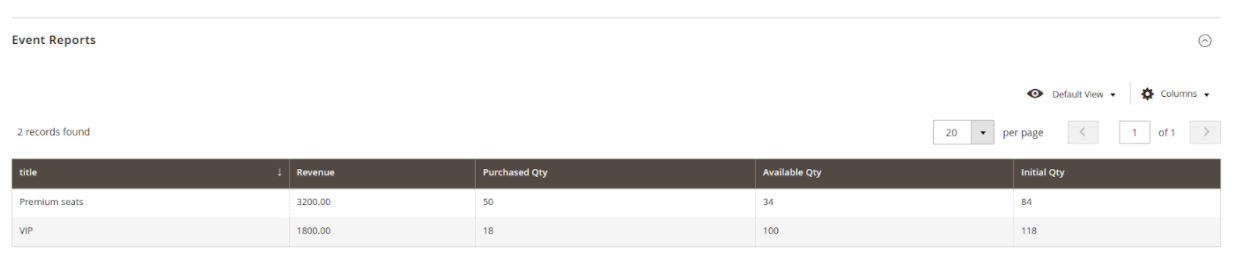

(plus) Report

Catalog > Events > Edit  > Event Reports

This grid table will show the sales statistics for each ticket option. You can see the available number of tickets, the purchased quantity, and the revenue from each option.



(plus) Terms and conditions

Catalog > Events > Edit > Event Tickets > Terms and conditions

You can add the terms and conditions for each event in this setting.

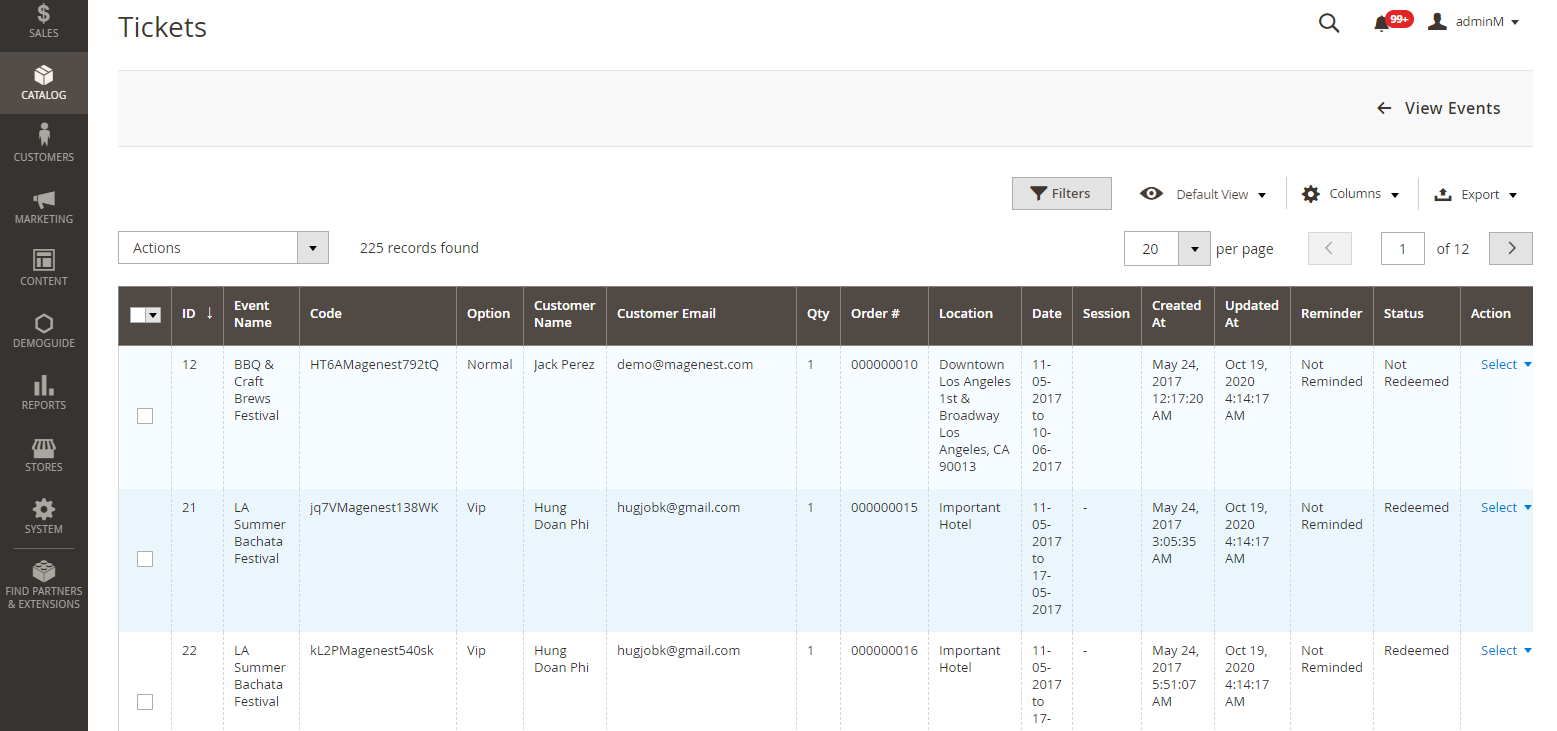

Manage Tickets

You can manage the events on your store in Catalog > Tickets.

In this table, you can track the customer and the ticket information (Quantity, Location, Date, Time), especially the ticket status (Redeemed or Redeemable).

You can also export this table to the CSV/XML file.



View order and invoice

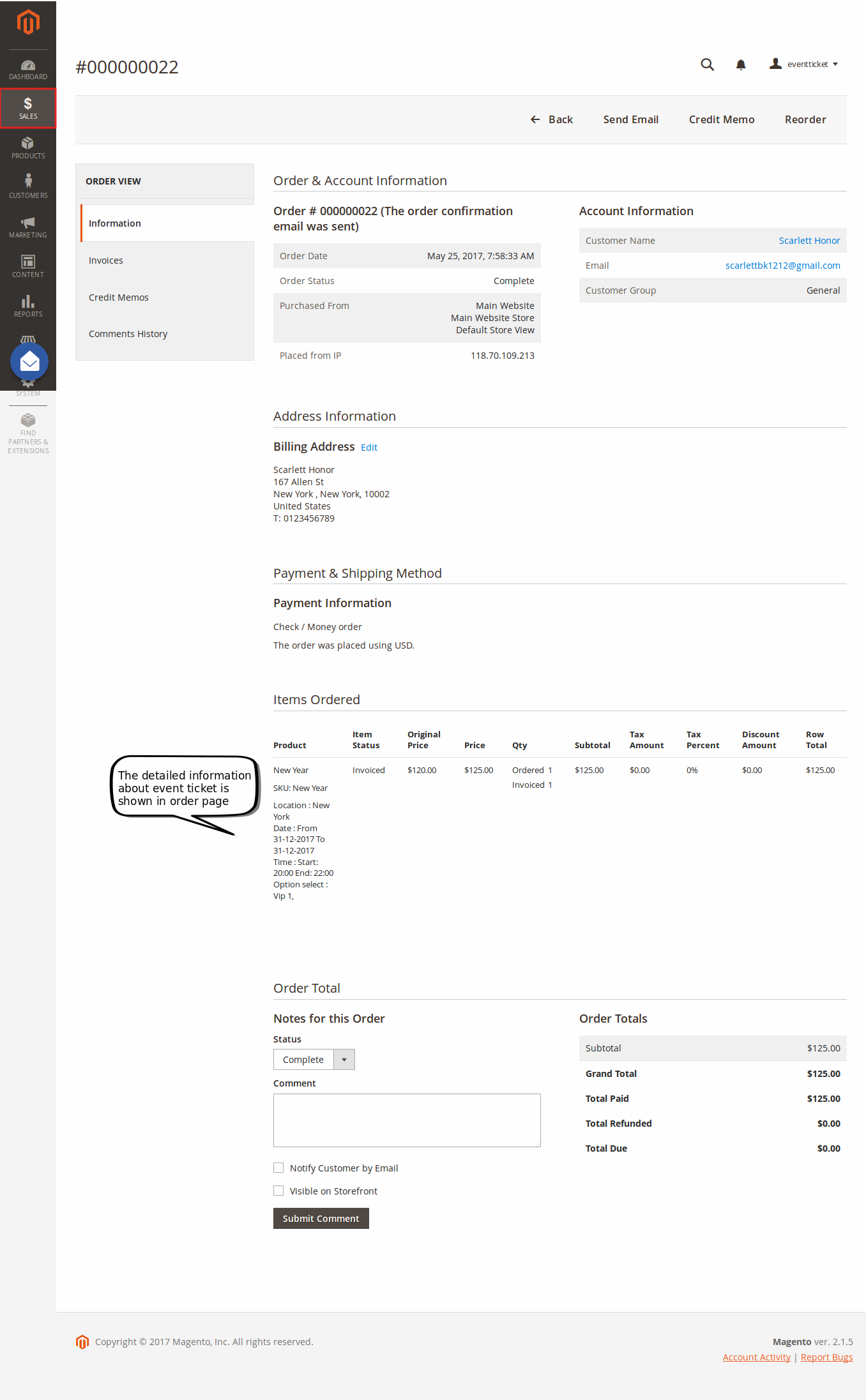

You can view the ticket info in each order

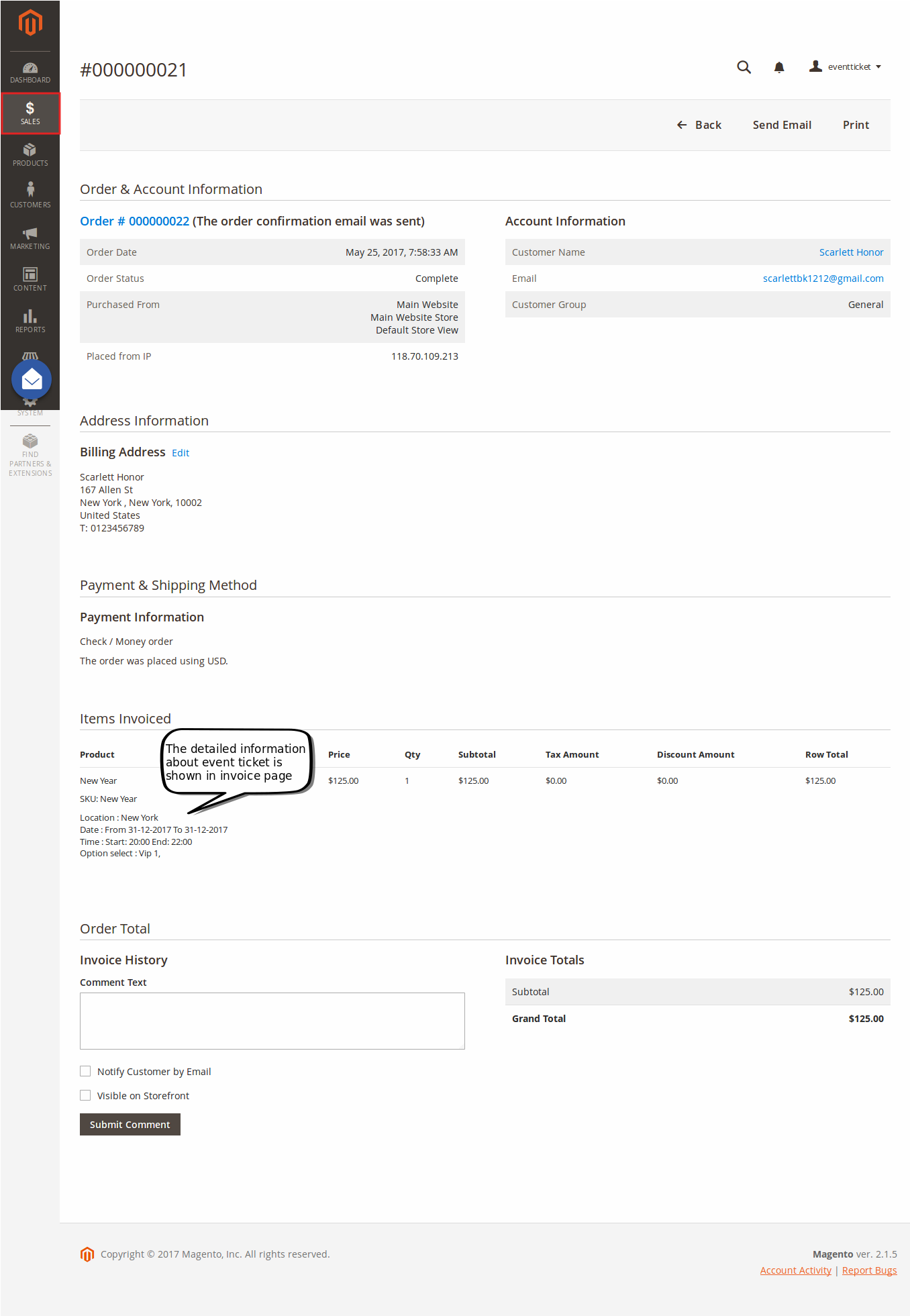

And Invoice:

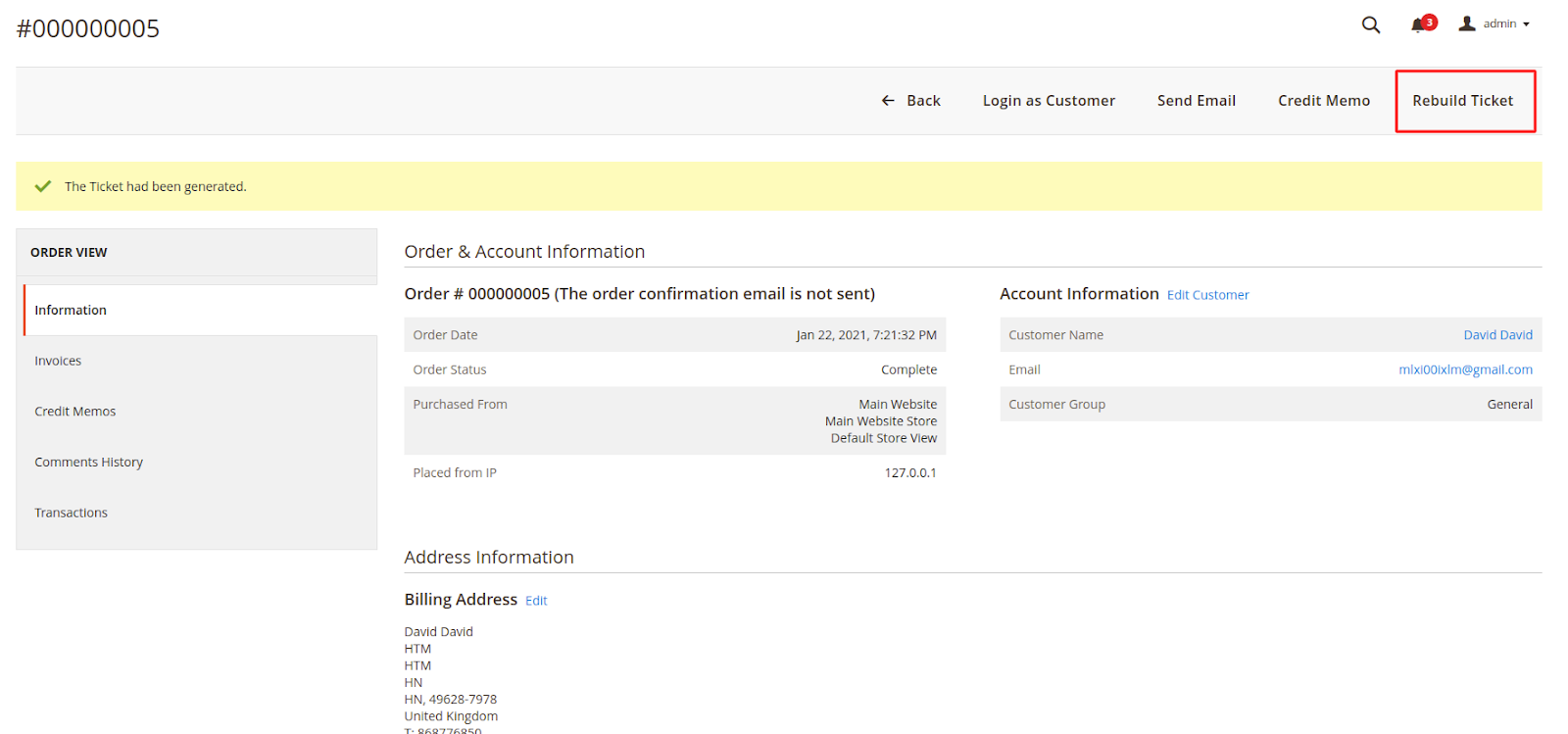

Rebuild Ticket

After the order is invoiced, tickets have been generated.

To rebuild this ticket, on the order page you can click on the Rebuild Ticket button to recreate a new ticket that replaces the old ticket.

 (warning) Note:  The Rebuild Ticket functionality only working for the order invoiced.




Store Front Functions

Event Page

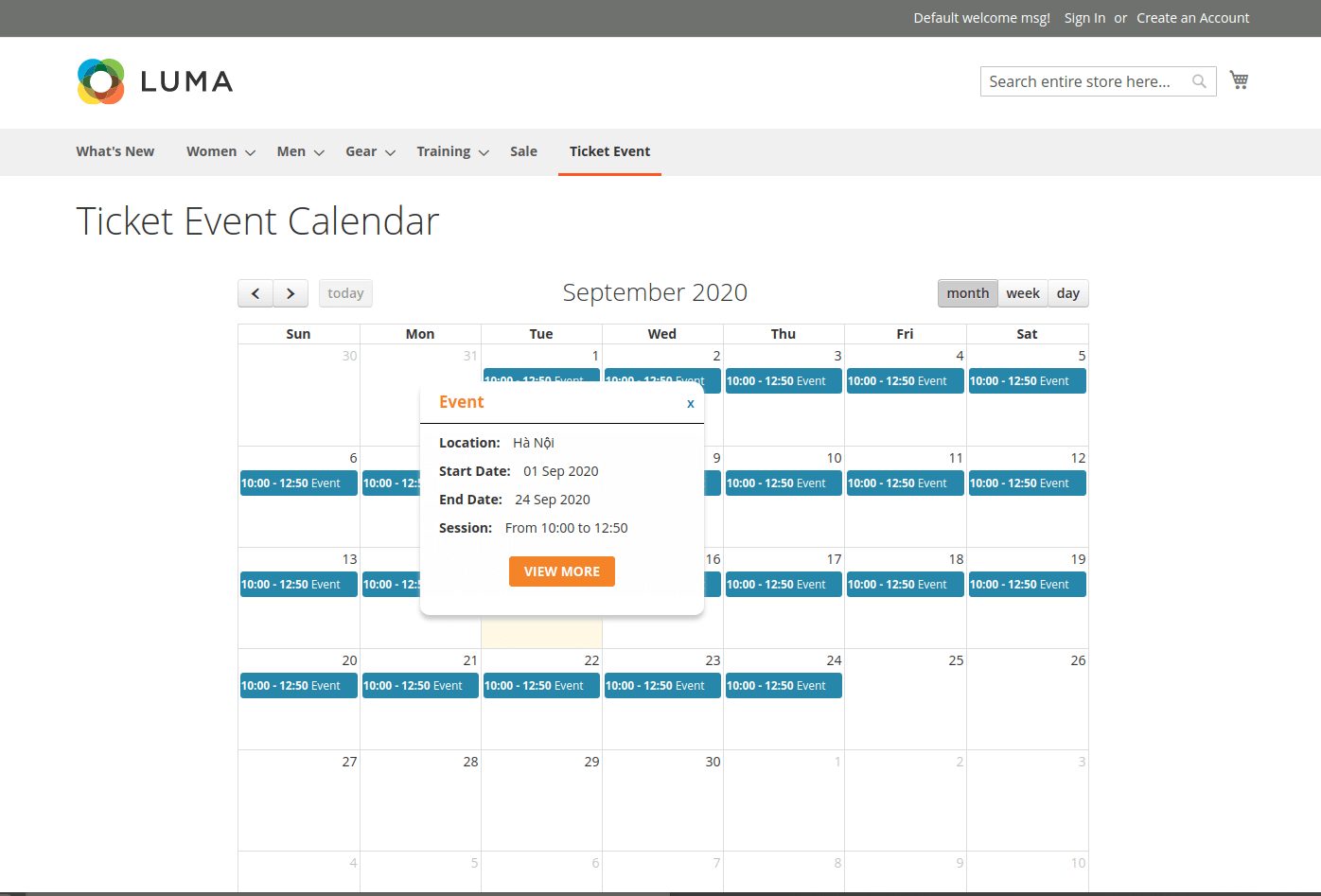

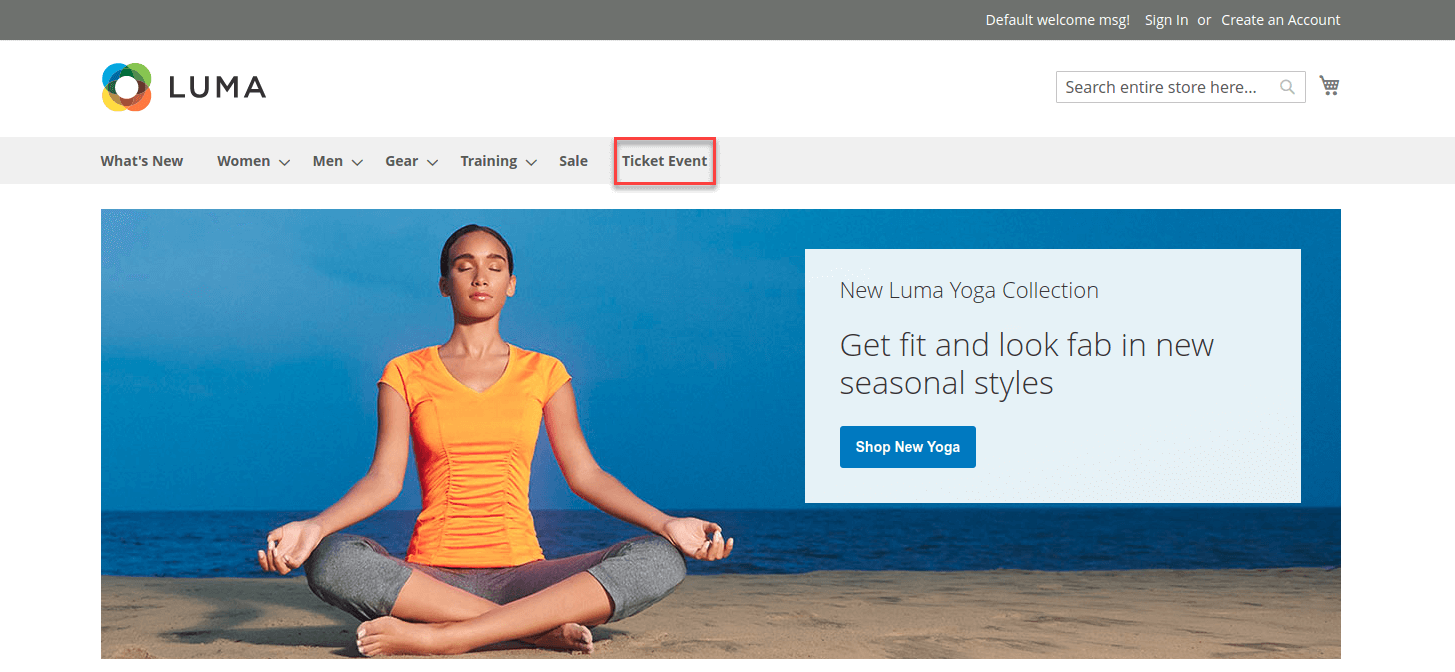

(plus) Customer could easily find the Event that you've added to the top Menu bar







Select ticket options



(plus) There are three steps to buy ticket as follow:

Step 1: Browse Event: allow the customer to choose location, session, date:




Step 2: Choose ticket options


Step 3: Confirmation

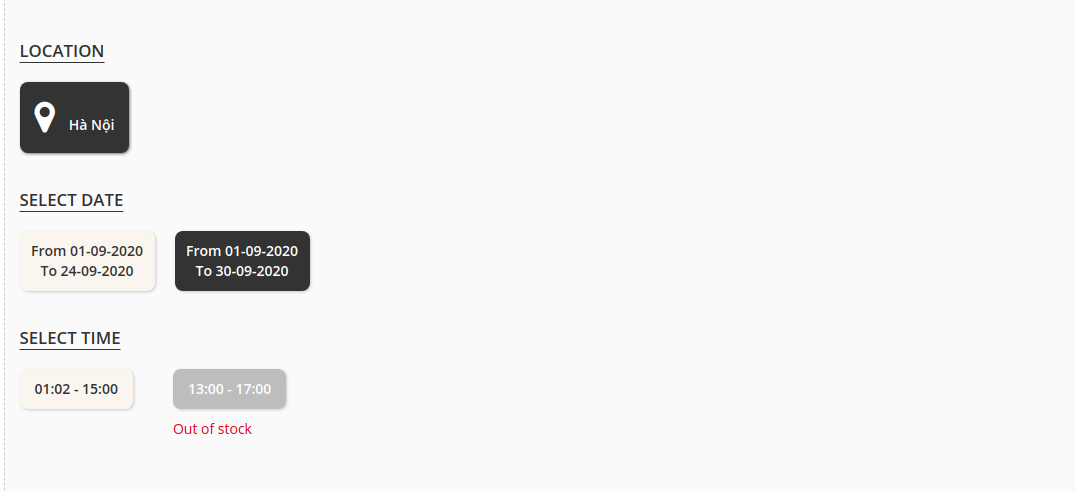

(star) If this event's ticket has been "Out of stock", customers will receive a message as in the image below
